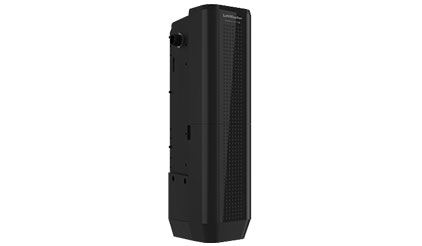

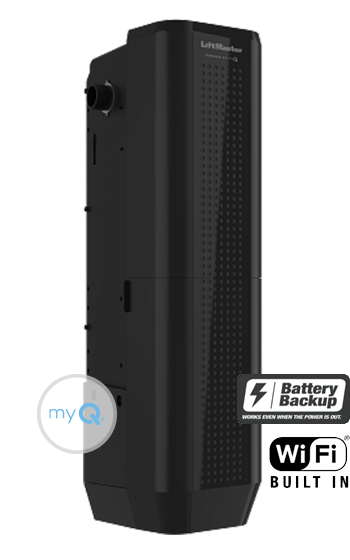

98032

Features

This model optimizes garage ceiling space overhead with is siding installation. If you want an extra storage space up above, have an oversized garage door, or even a cathedral ceiling, the 98032, up to 1100pounds, LiftMaster model, a residential Jackshaft-type opener, is the perfectly engineered solution to fit your specific garage door opener requirements. It mounts easily on the wall (right or left side) beside the garage door, and comes with a remote 200-watt light that can be positioned anywhere in the garage. The powerful 24v DC motor allows for ultra-quiet operation, as well as a smooth start and finish of the door, with adjustable speed. Meets all UL325 requirements.

Fully equipped with must-have features including built in Wi-Fi^® for smartphone control, MyQ^® Remote LED light which can be installed anywhere in the garage, Integrated Battery Backup and the Automatic Garage Door Lock.

Drive system: Jackshaft type
Heavy-lifting: power operates lifts doors 400 lbs. to 1,100 lbs.
Horse power: Dynamic 24V DC motor
Voltage: 120V AC, 60 Hz
Integrated backup battery
Soft start/stop for smooth operation
Integrated Wi-Fi^® and Bluetooth for the easiest way to connect the garage
myQ Technology allows you to monitor and operate your garage door opener safely using your smartphone.

Remote Lighting System: A 1000 lumens (200 watts) LED light system that you install where necessary and that plugs directly into a standard electrical outlet.
ALERT-2-CLOSE signals signals when a door it being closed
Integrated battery backup ensures access even when the power's out.
For sectional doors only, up to 14 feet (4.2 m) high or 180 square feet (16.7 m²), and up to 1100 lbs (498.95 kg).

The 98032 difference...

Specially designed for garages and unique applications that don’t allow for a traditional trolley-type garage door opener, such as garages with very low, cathedral or obstructed ceiling.
Ultra-quiet 24V DC motor performance.

Warranty*: Lifetime on motor

* Other parts of the opener are guaranteed for five years (accessories are not covered by this warranty). Integrated battery backup, remote and control panel are guaranteed for one year. Please refer to manual for details.

Standard security systems

Your security, our priority!

The Protector System^®

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Opener light turns on automatically when The Protector System's infrared beam is broken.

Interior manual release handle

This handle can be used to manually operate the garage door from the interior in the event of a power outage.

Security+ 2.0^TM

Security+ 2.0 rolling code technology eliminates frequency interference and assures a new code is sent every time the remote control is used.

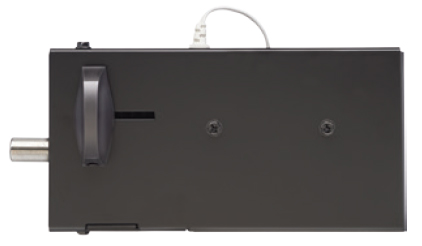

Power Lock^TM

Power Lock - once the garage door goes down, it's securely locked with the power lock, which is similar to a deadbolt and ensures the door cannot be forced open.

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.
